Gate, Globe & Check Valves

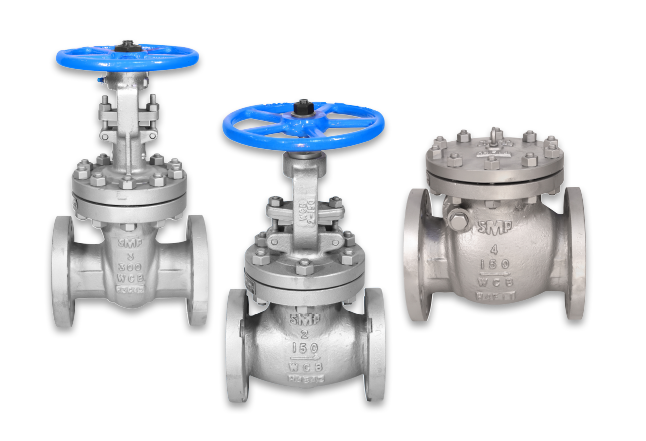

CAST VALVE
Cast Valves
High-performance valves for demanding applications
General Specifications
Bonnet Type
Bolted OS & Y / Pressure Sealed
Design STD
API 600/ BS1414/ API 6D
Face To Face
As Per ASME B16.10
Ends
Butt Weld / Flanged Ends
Testing Standard
As Per ISO 5208 / API598
Pr. Rating
#150 To #1500
Size
1/2" To 24"
Body Bonnet
WCB / CF8/CF8M/LCB
Wedge
WCB/C-15/CF8/CF8M
Seat
13% Cr / Stellite-6 (Hard Face Welded)
Temperature Range
-100°C To 800°C
Operators
Hand Wheel, Gear Box / Electric / Pn. Actuated

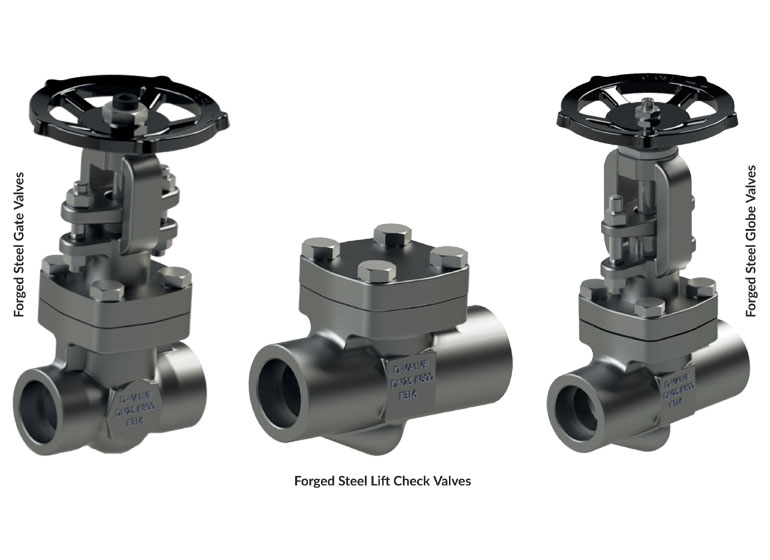

FORGED VALVES
Forged Valves (Gate, Globe and Check)
High-performance forged construction for extreme conditions
General Specifications
Type
Bolted Bonnet OS & Y / Seal Welded
Design Code
API 602
Ends
Screwed/ Socket Weld / Butt Weld
Testing Standard
As Per API 598
Pr. Rating
#800 To #2500
Size
10NB TO 50NB
Body & Bonnet
A105 / A182 F304/F316 /F316L/ Monel Etc.
Wedge / Plug
WCB/C-15/CF8 / CF8M
Seat
13% Cr / Stellite-6 (Hard Face Welded)
Temperature Range
-100°C To 800°C
Operators
Hand Wheel, Electric
Flanged Valves
Available as Optional. Cryogenic Valves With Testing Available.

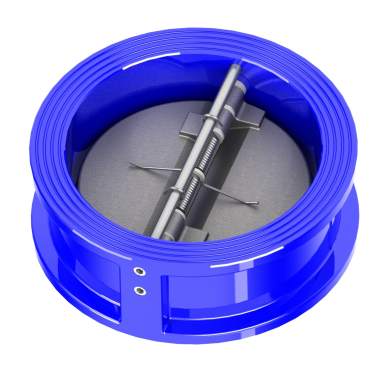

DUAL PLATE
Dual Plate Check Valves
Compact design for efficient flow control
General Specifications
Design STD
As Per API 6D/ API 594
Face To Face
As Per ASME B16.10
Ends
Wafer/Lugged/Flanged
Testing Standard
As Per API 598
Pr. Rating
#150 To #2500
Size
2" To 24"
Body
DI/WCB/ CF8/CF8M/ LCB, Etc.
Door
WCB / C-15/CF8/CF8M, Etc.
Spring
Spring Steel/SS304/SS316/Inconel Etc.
Metal Seat
13% Cr / Stellite-6 (Hard Face Welded)
Soft Seat
EPDM/NBR/PTFE/VITON
Temperature Range
-100°C To 800°C
WAFER CHECK
Wafer Check Valves
Space-saving design for pipeline applications
General Specifications
Design STD
As Per API 6D
Face To Face
As Per ASME B16.10
Ends
As Per ASME B16.5
Testing Standard
As Per API 6D
Pr. Rating
#150 TO #300
Size
2" To 24"
Body/Disc
DI/WCB/CF8/CF8M/ LCB, Etc.
Metal Seat
13% Cr / Stellite-6 (Hard Face)
Soft Seat
EPDM/NBR/PTFE/VITON
Temperature Range
-100°C To 200°C

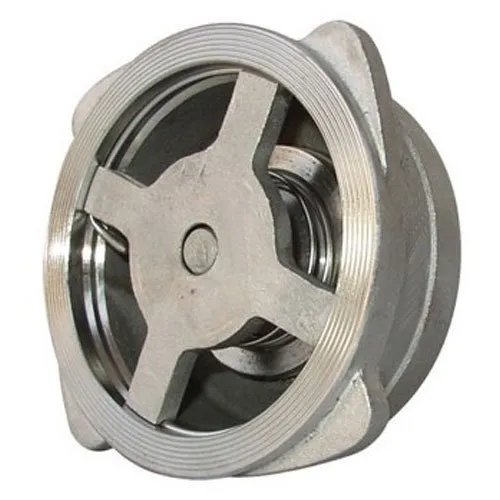

NON-SLAM
Non-Slam Check Valves
Silent operation for noise-sensitive applications
General Specifications
Face To Face
API 594
Ends
Wafer Type
Testing Standard
API 598
Pr. Rating
#150 To #300
Size
1" To 8"
Body
CF8/CF8M
Disc
CF8/CF8M
Seat
Base Material / Stellite-6
Temperature Range
-100°C To 200°C

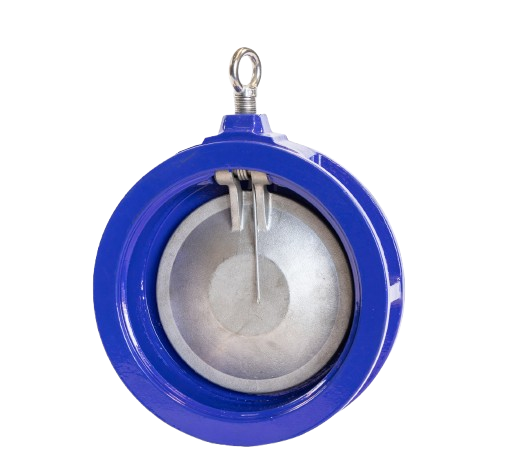

SINGLE DISC
Wafer Single Disc Check Valves
Simple and reliable check valve design
General Specifications
Face To Face
EN 558-1 (Series16)
Ends
Wafer Type
Testing Standard
MSS-SP-61
Pr. Rating
#150 To #300
Size
2" To 24"
Body
CA15 / CF8/CF8M
Disc
C-15/CF8 / CF8M
Seat
Base Material / ST 6 (Hard Face)
Temperature Range
-100°C To 200°C
Features
Counter Weight option With/Without Hydraulic damping Available

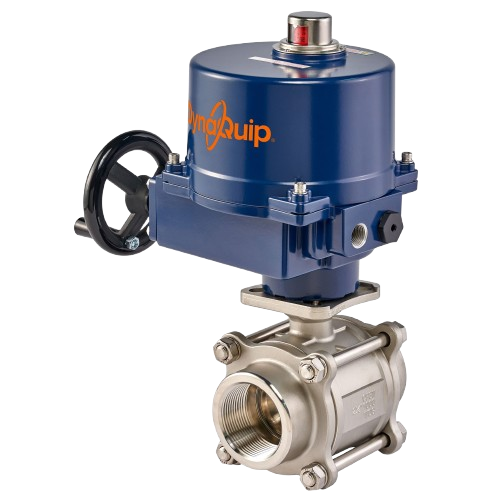

ELECTRIC
Electrically Actuated Valves
Automated control for modern industrial systems
Electrically operated Ball valves, Butterfly valves, gate valves and globe valves can be supplied for ON/OFF duty and control duty applications.
Key Features
Valve Types
Ball, Butterfly, Gate, Globe
Operation
ON/OFF & Control Duty
Actuation
Electric Actuators
Control Options
Local & Remote Control
Enclosure
Weatherproof & Explosion Proof
Power Supply
24V DC to 480V AC
Position Feedback
Limit Switches & Positioners
Manual Override
Handwheel & Emergency Operation
