Plug Valves
METAL SEATED

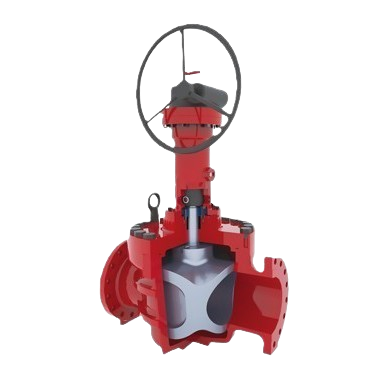

Metal Seated Plug Valve
High-performance valves for demanding applications
The valves may be water type / lugged water type with lever operation (normally up to DN150/6"), quarter turn gear operated and actuated operated for sizes DN200 and higher. The valves are bi-directional and suitable for on/off and control applications.
General Specifications
Actuator
Single/Three phase
Supply
220V/110V/415V/380V/24V DC
Enclosure
Weather/Flame Proof
Type
ON-OFF/Modulating
Manual Override
Wheel Type
Size
1/2" to 12"
MOC
WCB/CF8/CF8M
Seals
Metal to Metal/PTFE
Pressure
150#/300#/600#/900#
Temperature
Up to 180°C/450°C
Ends
Flanged/Socket
PTFE LINED

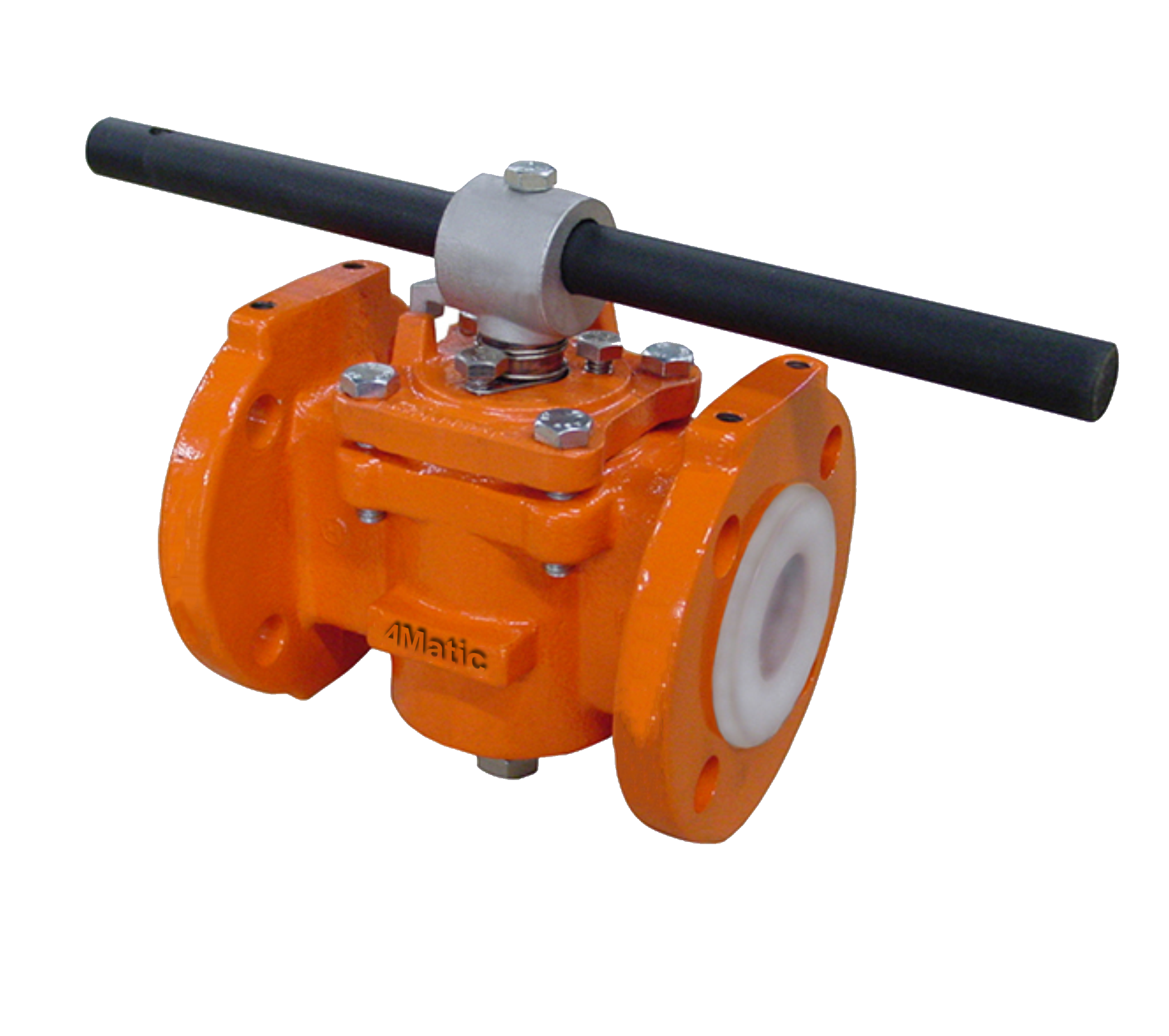

PTFE Line Plug Valve
Chemical resistant design for corrosive media
Full bore PTFE lined plug valves designed for handling corrosive and abrasive media with excellent chemical resistance and smooth operation across various industrial applications.
Full Bore Valve Specifications
FULL BORE
DESIGN
Body
A216 WCB/SS304/SS316/A395
Stem
A216/SS304/SS316
Ball
A216/SS304/SS316
Hand Lever
A216/SS304/SS316
Seat Ring
PTFE
Gland Packing
Chevron PTFE
Flat Washer/Stub
SS304
